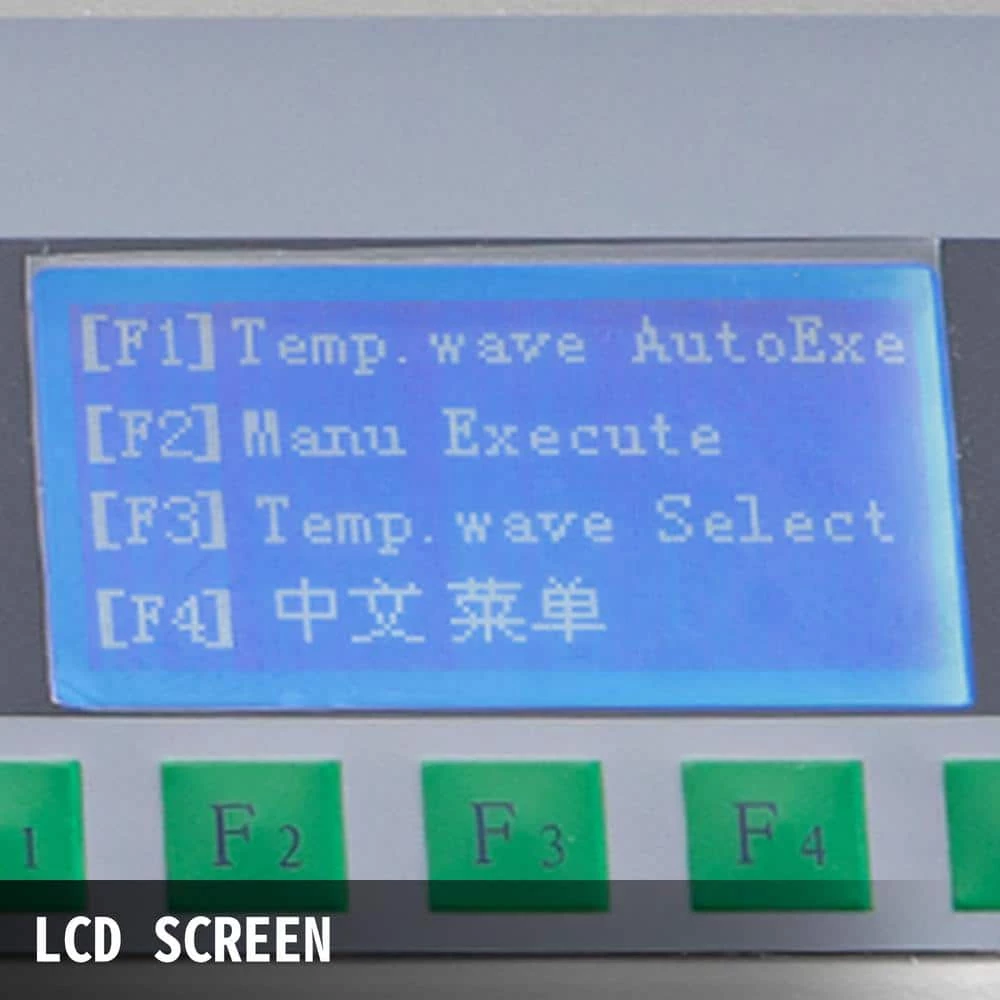

This is a micro-processor controlled reflow oven, works automatically by micro-computer control. It can satisfy a dissimilarity SMD、BAG soldering a request on a PCB assembly. The T962A may be used to automatically “re-flow” solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes. Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very accurate and even. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air. User interface is implemented by way of T962A input keys and an LCD display. Pre-set heating modes are selected by user interaction with thermal cycle progress observed on LCD display.Can be used to the gum of the product solid turn, the circuit board is hot aging, the PCB plank maintains to wait various works.Adopted a high and dependable design, make what you see gratifying and rest assured.

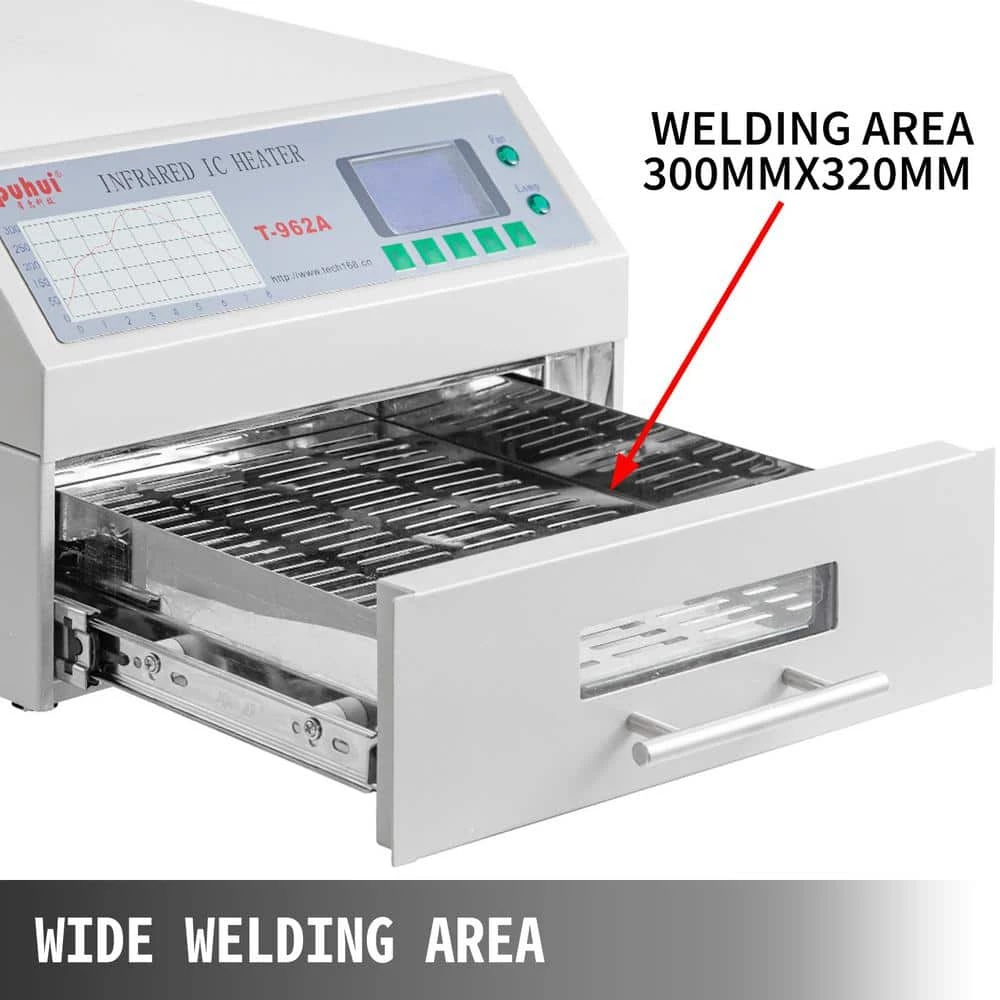

- Wide Solidering Area: Soldering Oven, Power: 1500 Watt; Soldering area: 300 x 320 mm
- Effective Temperature Control: Reflow Machine, Temperature Range: 212°F to -662°F; Cycle Time: 1 to 8 min

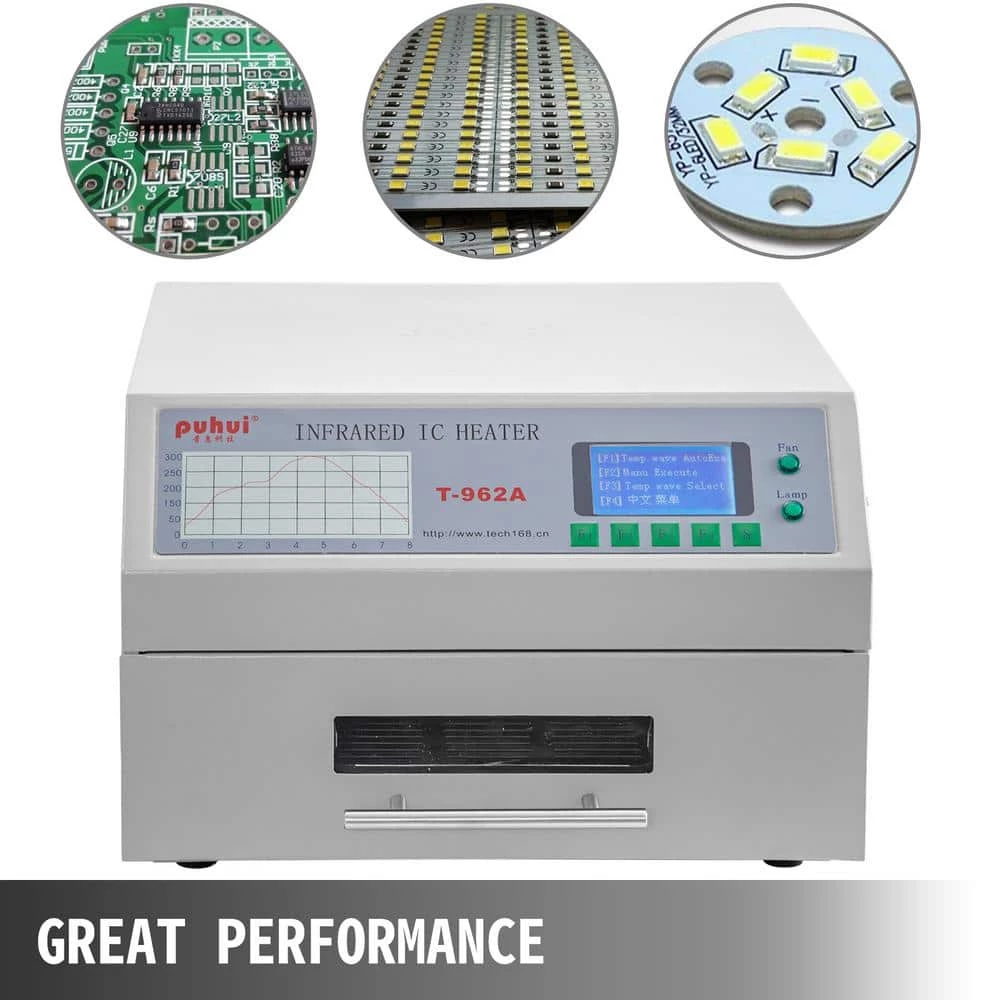

- Multifunctional: This reflow oven can solder single and double PCB panels with all kinds of encapsulation form

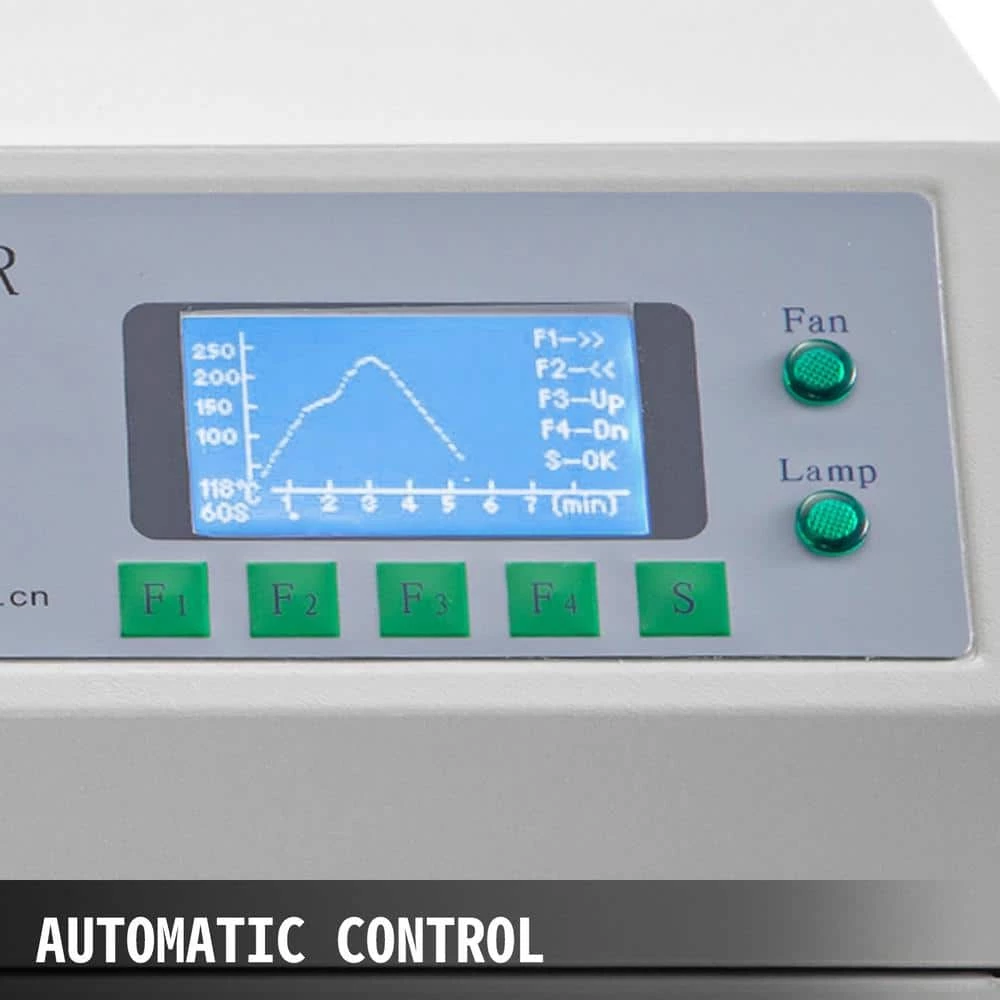

- Automatic Soldering Process: The reflow soldering machine is a microcomputer automatic control, the whole welding process from pre heating, soaking, reflux to cooling is automatically completed
- Easy to Use: Memory eight kinds of temperature parameter waves of the reflow soldering machine can be provided as choice, and establish to move heating and cool off function compulsory
- Item Specification: Certification: CE Infrared reflow oven model: T962A, Rated power: 1500 Watt, Effective Soldering max area: 11.8 in. x 12.6 in., Power supply: AC 110-Volt/ 60Hz, Temperature Range: 212°F to -662°F, Cycle Time: 1 to 8 min, Rated Duty Cycle: 100%
- Package Content: 1 X Main Heater Infrared Oven, 1 X English Manual
