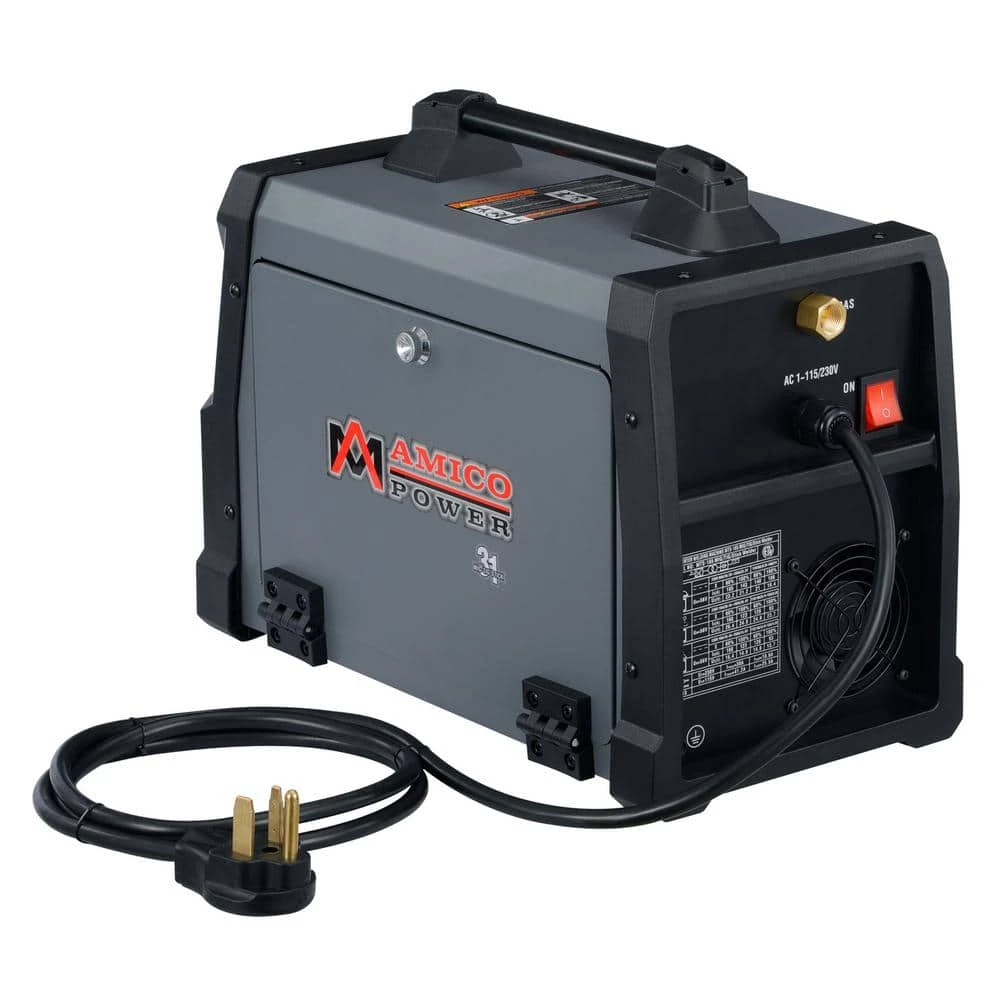

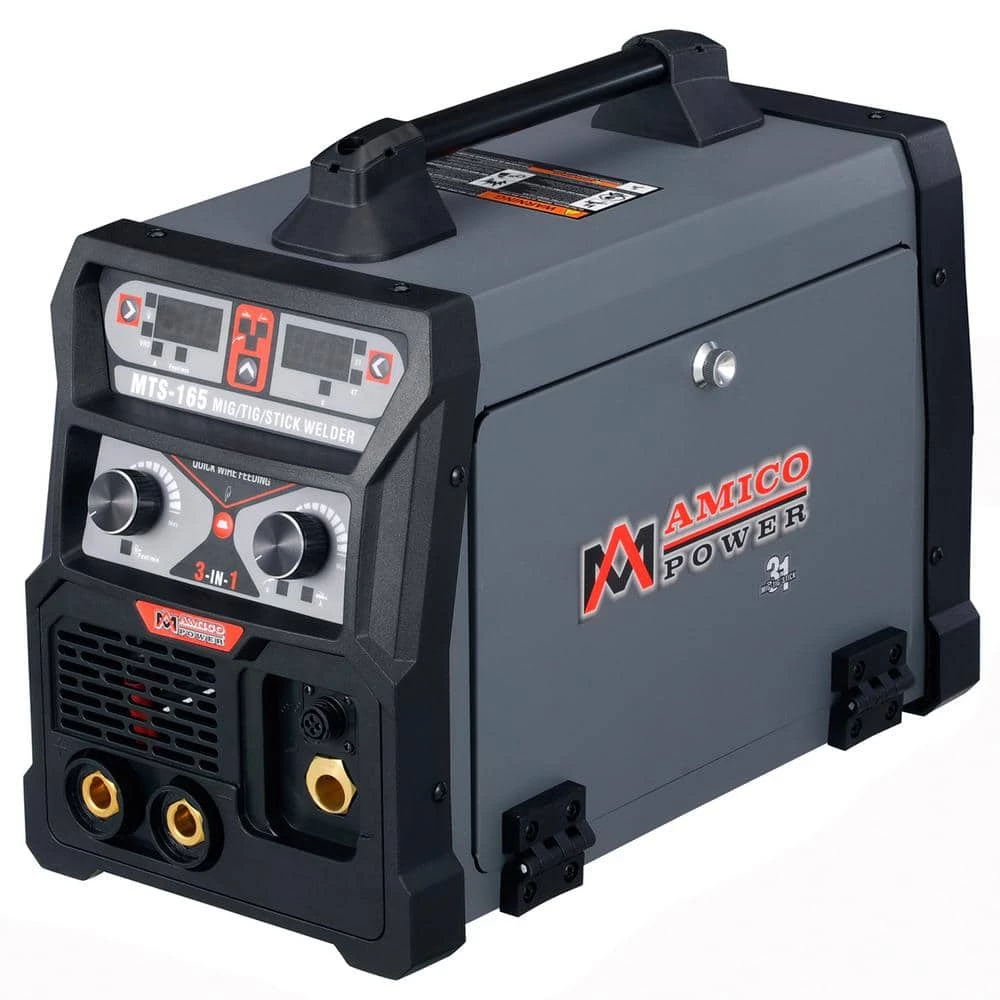

AM AMICO ELECTRIC 165 Amp MIG Wire Feed/Flux Core/TIG Torch/Stick Arc Welder, Weld Aluminum with 2T/4T 110-Volt/230-Volt Welding

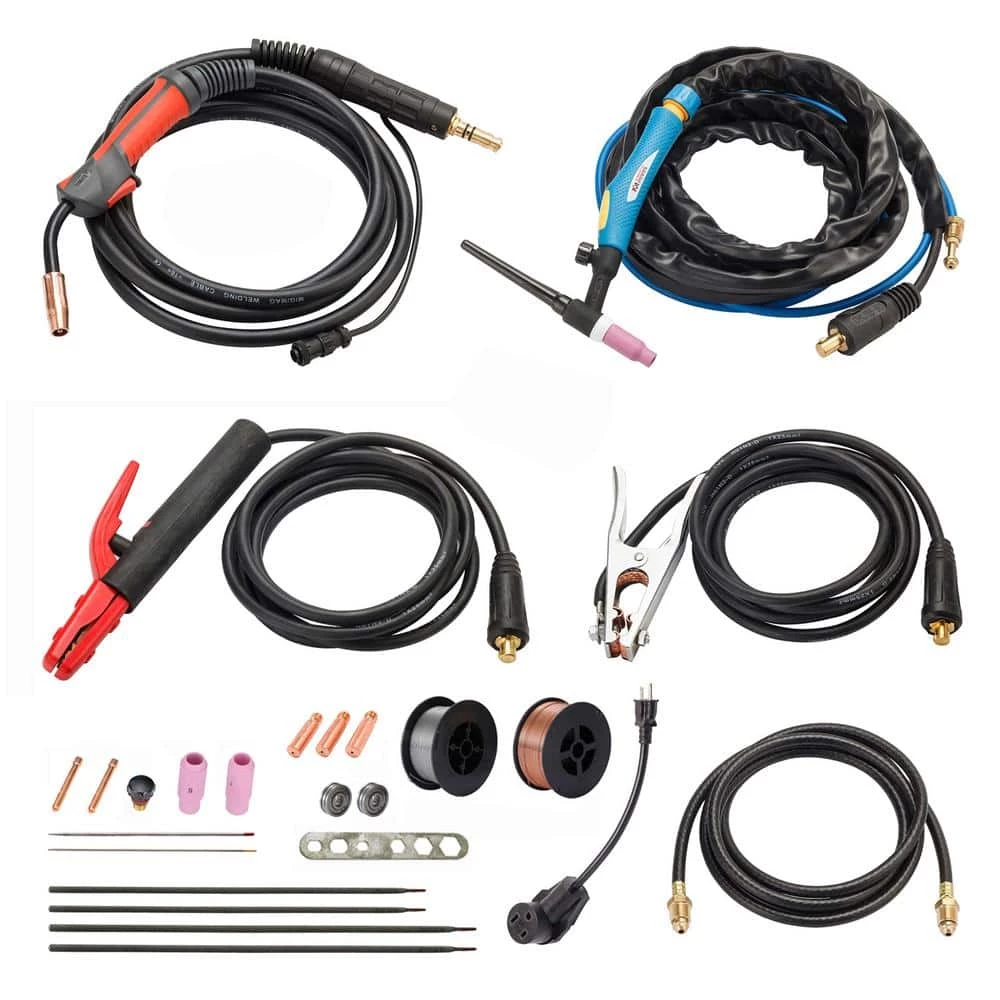

Specifications: Welder Type: 3-IN-1 MIG/TIG/STICK Combo Welder, Output Terminal Type: Direct Wire, Power Supply: AC 100V-240V/Single Phase/50-60Hz. Effective Input Current: 115V: 28.9A(MIG)/17.2A(TIG)/29.1A(STICK), 230V: 19.8A(MIG)/11.9A(TIG)/19.5A(STICK). Maximum Input Current: 115V: 37.3A(MIG)/22.2A(TIG)/37.6A(STICK), 230V: 25.6A(MIG)/15.3A(TIG)/25.1A(STICK). Current Range Output: MIG: 115V/50A-130A, 230V/50A-165A, TIG: 115V/10A-110A, 230V/10A-140A, STICK: 115V/10A-110A, 230V/10A-140A. Nominal DC Open Circuit Voltage (OCV): 56V, Welding Output,104F(40C),10 min(230V): MIG: 165A/22.2V, TIG: 140A/15.6V, STICK: 140A/25.6V. Duty Cycle: MIG: 60% at 165A, 100% at 128A, TIG: 60% at 140A, 100% at 108A, STICK: 60% at 140A, 100% at 108A. Efficiency: 93%, Power factor: 0.85, Cooling Method: Fan Cooled, Product Size: 13.4 x 9.1 x 17.3 in. Product Weight: 25.0 lbs. Package Size: 24.2 x 14.2 x 18.1 in. Package Weight: 48.0 lbs. Package Includes: 13 ft. 200A pro. MIG gun and cable assembly, 13 ft. 200A pro. TIG Torch gun and cable assembly, 10 ft. 300A electrode holder and cable assembly, 10 ft. 500A work clamp and cable assembly, 110V/240V power plug adapter, 8 feet air hose use for Co2 and Argon connect, 1 spool 2 lbs. aluminum wire use for MIG weld, 1 spool 2 lbs. steel wire use for MIG weld, 2 pcs tungsten Needle use for TIG weld, 4 pcs electrode use for Stick Arc weld, 1 U-drive roll for 0.030 and 0.035 (0.8mm/0.9mm), 1 V-drive roll for 0.023 and 0.030 (0.6mm/0.8mm).

• MTS-165 multi-function 3-in-1 MIG/TIG/stick arc professional combo welder, capable of welding up to 1/4 in. aluminum, alloy, mild steel, weld steel, stainless steel, copper and cast iron, it is the perfect choice for projects and repairs around the home and auto body shop
• Can work well with aluminum wire, solid wire and flux cord wire, it also has the TIG torch and stick function, can weld steel and stainless steel perfectly
• Advanced IGBT technology, featured wave-form control system, perfect waveform of volt and amp during, short circuits and arc burning cycles
• Synergic controlled, very easy and simple operation, it has settings to easily adjust the output according to the thickness and changing the polarity according to the type of wires
• Very clear wire melting droplet transfer, very few spatters. fast, precise, clean arc ignition and arc ending, 100-Volt to 240-Volt voltage inputs, means you can plug into any common power supply
• Automatic compensation for voltage fluctuation, over-voltage protection, under voltage protection, over current protection, over load protection, automatic temperature control, fan dormancy, steeples amperage control

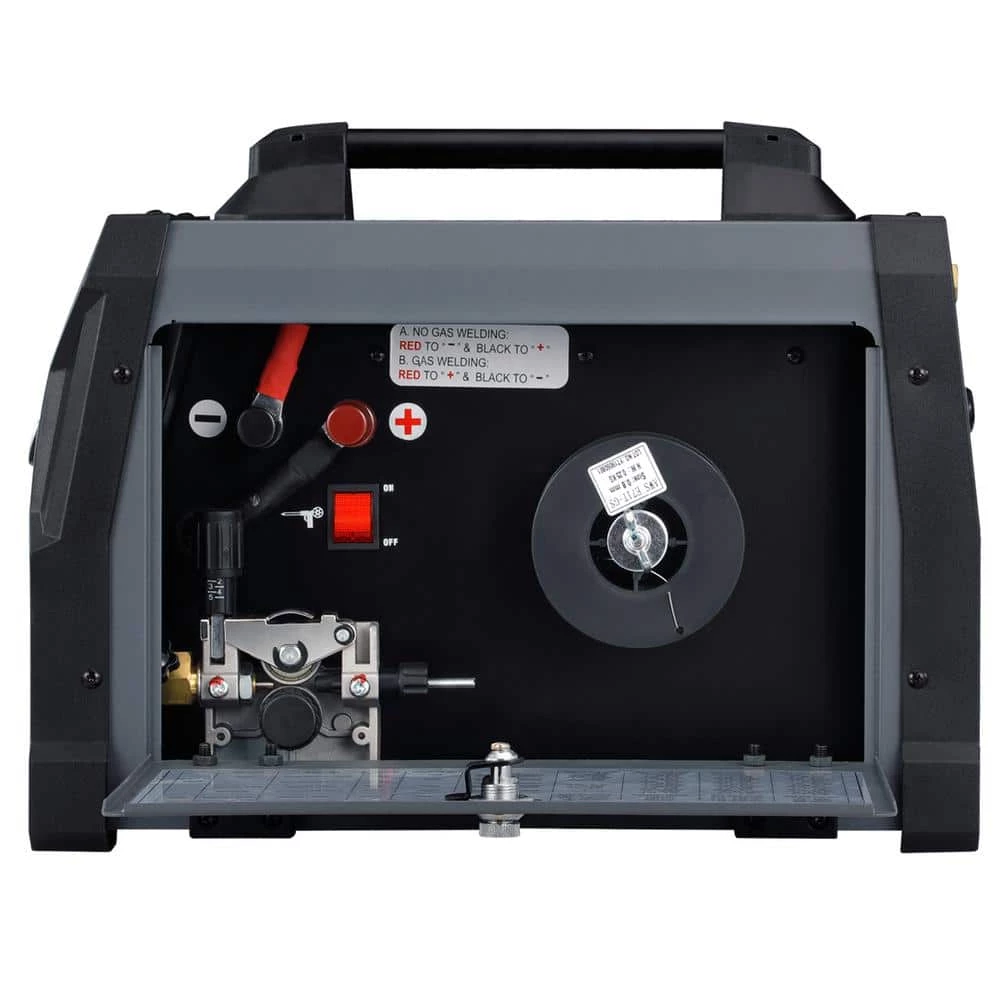

• Using high quality wire feeding machine (iron) to ensure smooth wire feed, especially when using aluminum wire welding aluminum, with 2T/4T torch control, automatic control gas solenoid valve has been installed inside the machine
